Product Details:
Additional Information
| Manufacturer | Intel Corp. |
|---|
Details

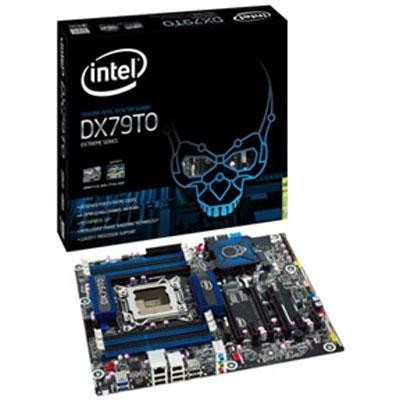

Single pack Intel Desktop Board DX79TO supports Intel Core i7 Extreme Edition processor series in the LGA2011 socket; Intel X79 Express Chipset; Eight 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets, Support for up to DDR3 1600+ O.C., Support for up to 64 GB of system memory; Intel High Definition Audio (Intel HD Audio) subsystem in the following configuration: 6-channel (5.1+2 independent multi-streaming) audio subsystem with three analog audio outputs; Intel Gigabit (10/100/1000 Mb/s) LAN subsystem using Intel Gigabit Ethernet Controller; TPM module built-in; Expansion: Two PCI Express 3.0 x16 bus add-in card connectors, Three PCI Express x1 connectors, One PCI conventional bus connector; Peripheral interfaces: Two SuperSpeed USB 3.0 ports (2 external ports), 14 USB 2.0 ports (6 external ports, 8 via internal headers), Six Serial ATA ports: 2 internal connectors (6.0 Gb/s), 4 internal connectors (3.0 Gb/s), Two IEEE 1394a ports (1 external port, 1 via internal header), Consumer Infrared receiver and emitter.
