Product Details:
Additional Information
| Manufacturer | Hauppauge Computer Works |
|---|
Details

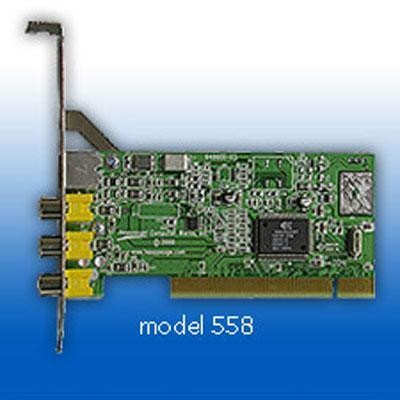

The ImpactVCB board provides image capture from a desktop CCD camera or other analog input. Impact VCB board is a small 1/3 height PCI board based on the Conexant 878A video digitizer chip. It requires a bus-master PCI slot. A VGA card with Direct Draw 3 (or later) capability is required for Live Display. Drivers are provided with the ImpactVCB board. Incoming image is digitized using high quality 4:2:2 video sampling and displayed in a window on the PC's VGA screen. The image is transmitted directly by the ImpactVCB into main system memory or the memory of the VGA adapter for high performance results. Model 558 features 3 Composite Video Inputs and 1 S-Video Input.
