MODEL- DES-108 VENDOR- D-LINK

FEATURES- Unmanaged 8-Port 10/100 Desktop Switch

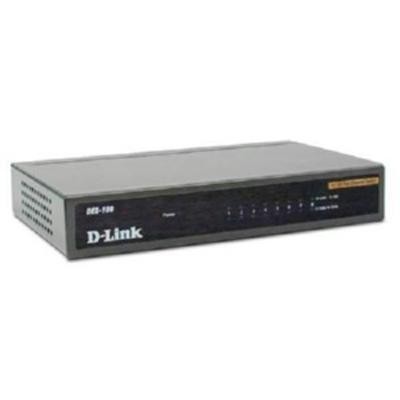

The D-Link DES-108 is a 8-port, Fast Ethernet desktop switch for the
SMB and enterprise seeking a metal housed, Plug-and-Play solution
capable of providing reliable connectivity for network users. The
DES-108 delivers power, performance, and reliability in one cost-
effective, space-saving design. The metal exterior provides a
durable alternative to plastic enclosures. This makes the DES-108 a
perfect solution for installation in locations such as a warehouse,
automotive garage, wiring or Telco closet. In addition, the sleek
and polished design of the DES-108 adds a level of sophistication
to the SMB and Enterprise network seeking to maintain the look and
feel of their network all the way to the desktop.
* Switching Features
The DES-108 8-port 10/100 desktop switch supports full duplex operation
on all 5 interfaces for up to 200Mbps per port, and a combined switching
capacity of up to 1.6Gbps. Per-Port color LEDs clearly indicate link
status and port speed for quick diagnostic and troubleshooting. It
features a non-blocking switching architecture that filters and forwards
packets at full wire-speed for maximum throughput. The DES-108 combines
dynamic memory allocation with store-and-forward switching to ensure
that the buffer is effectively allocated for each port; and controls the
data flow to guarantee against possible packet loss. The DES-108 is
scalable, allowing two or more units to be cascaded together. Since all
ports support 200Mbps, any one of its eight ports may be used to cascade
to an additional switch to open a Full-Duplex Fast Ethernet pipe.
Additionally, the DES-108 supports 802.3x Flow Control to minimize
dropped packets through the sending out of collision signals when the
ports receiving buffer is full.
The DES-108 is compact and portable. With its small footprint, the
DES-108 can fit in almost any location making it the perfect solution
for implementations where space is limited. In addition the DES-108 is
wall mountable, providing even more flexibility for mounting under a
desk or in a small wiring cabinet. Ambient noise is never a concern with
the DES-108. With no need for cooling fans, the DES-108 runs quietly and
unnoticed, making implementations where low decibel operation is
required simple and worry free.
* Easy to Install and Maintain
The auto features of the DES-108 8-port 10/100 desktop switch make
installation plug and play and hassle-free. No configuring is required.
Auto MDI/MDI-X crossover on all ports eliminate the need for crossover
cables or uplink ports. Crossover or straight-through CAT5 cables can be
plugged into any port. Auto-negotiation on each port senses the link
speed of a network device (10 or 100Mbps) and intelligently adjusts for
compatibility and optimal performance, providing an automatic and
flexible solution for the network.

-- SPECIFICATIONs ----------------------------------
STANDARDs - 802.3 Ethernet, 802.3u Fast Ethernet, 802.3x Flow Control
CONNECTORs - (8) 10BaseT/100BaseTX/RJ45 ports
Universal UTP Cable Recognition for Straight-Through or
Crossover Cables (MDI/MDI-X).
PERFORMANCE - MAC Address Table Size: 1K
Switch Fabric : 1.6Gbps Forwarding Capacity
Transmission Method : Store-and-forward
Packet Buffer Memory
