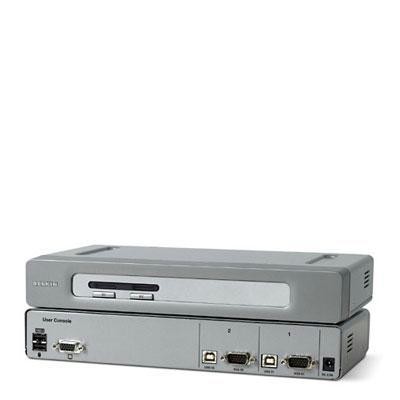

MODEL- F1DN102U VENDOR- BELKIN

FEATURES- 2-Port KVM Omniview Secure
Protect classified computers with the only USB KVM switch listed by
NIAP Designed specifically for secure military and government
installations, the OmniView Secure KVM Switch lets you control two
USB computers from a single USB console. This product ensures the
integrity of your data by safely switching between classified and
unclassified computers. The OmniView Secure KVM Switch is the only
USB KVM switch listed by NIAP, and is pending NIAP Common Criteria
validation to EAL 4.
The Secure KVM Switch features a dedicated processor per computer
port. This keeps each classified and unclassified computer separate
and secure at all times, and prevents data transfer among them. The
device has no memory buffer or data-storage capability, making it
impossible for your keystrokes and other data to unintentionally
transfer as you switch between computers.
* Custom firmware is not reprogrammable, to prevent tampering with KVM
logic.
* Circuits are soldered directly to the circuit board, to prevent tampering
with components, Tamper-evident tape on enclosure indicates if Switch
has been compromised.
* Rugged, metal enclosure provides stability and allows Switch to be placed
beneath monitor or other desk item.
* Dedicated port selector per computer allows users to switch easily from
one computer to the next.
* LEDs provide easy identification of which computer is being accessed.
* Desktop or 1U rack-mountable installation.
* Supports USB computers, keyboards and mice.
* Supports high video resolutions of up to 1920x1440@75Hz
* Comes with a 3-year warranty and free technical support.
* Requires optional Rack-Mount Kit (MFG# F1D005). One Belkin All-in-One
KVM Cable Kit is required per computer (MFG# F3X1962bXX)where XX =
length in feet).

-- SPECIFICATIONS ----------------------
ENCLOSURE - Metal enclosure with high-impact plastic
faceplate
POWER - 5V DC, 2.5A power adapter
USERS SUPPORTED - 1
COMPUTERS SUPPORTED - 2
MONITORS SUPPORTED - CRT and LCD (with VGA support)
RESOLUTION SUPPORTED - Up to 1920x1440@75Hz
CONSOLE KEYBOARD INPUT - USB Type A
CONSOLE MOUSE INPIT - USB Type A
CONSOLE MONITOR PORT - HDDB15 female (VGA)
CPU KEYBOARD/MOUSE INPUT - USB Type B
CPU MONITOR PORTS - HDDB15 male (VGA)
DIRECT PORT SELECTORS - 2
LEDs - 2
