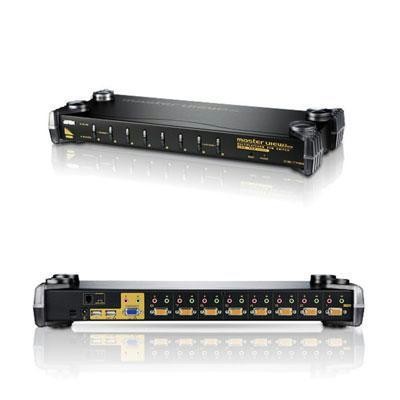

MODEL- CS1758KIT VENDOR- ATEN TECHNOLOGY

FEATURES- 8-Port MasterView KVM switch with Cables
This kit includes four 6 foot USB KVM cables and four 10 foot USB
KVM cables.
ATENs 8-port MasterView Max is the ideal tool to help reduce
redundant hardware. Eight monitors, mice and keyboards are simply
too expensive, bulky and inconvenient for most system
administrators. Why bother when you can control all 8, or even up
to 512 computers with a single keyboard, monitor and mouse? The
added audio support allows you to enjoy music while working. Just
think of the time, space and money you will save, and added fun.
The MasterView Max is much more than a simple eight-port KVM switch.
The dual interface support allows you to connect both PS/2 and USB
computers on the same switch. The multi-platform support allows you
to control Windows-based computers, Sun Solaris systems, Linux, or
even Macs by a single KVM switch. ATEN extended the multi-platform
support by supporting the special keys on both Sun and Mac
keyboards. This KVM switch also comes with the ATEN VSE technology,
which provides excellent video resolution - up to 2048 x 1536.
Built-in AutoScan mode lets you conveniently monitor every attached
computer for a specified amount of time, while our On Screen
Display (OSD) technology allows you to assign a unique name to each
computer and access it via a smooth menu-driven interface. With its
1U, 19" rack-mountable casing and status-monitoring LEDs, the
MasterView Max is the perfect switch for your server room or any
other multi-computer environment.
Includes 8-port KVM, Power adapter, Firmware upgrade Cable, User
manual, Quick Start Guide, (4) 6 foot USB KVM cables (2L5302U),
(4) 10 foot USB KVM cables (2L5303U).
* Dual interface support -- supports computers with either PS/2 or USB
Keyboard and mouse.
* Multi platform support -- Windows, Mac, and Sun Solaris
* Easy to install -- just plug the cables in
* Audio support allows sharing multimedia speakers and MIC phone
* Easy to operate - computer selection via front panel switches, intuitive
OSD (on screen display), and Hot Keys.
* Security - 2 level password protection for OSD
* Hot Pluggable - both console side and computer side can hot swappable and
auto-detect device change.
* LED Display for easy status monitoring
* Auto Scan Mode for monitoring all computers
* Complete keyboard emulation for error free booting
* Superior video quality; 2048 x 1536; support DDC2B.
* Total capacity expandable to support 512 computers via 3 levels of
cascading.
* Supports special keys on Sun and Mac keyboards
* Firmware upgradeable through flash ROM
* Designed for both desktop and rack mount (rack mount kit included).

-- SPECIFICATIONs -----------------------------------
CONNECTORS - Console: (1) USB Type A (for keyboard)
(1) Stereo (for audio)
(1) RJ-11 (for Flash ROM Upgrade)
(1) USB Type A (for mouse)
(1) Microphone
(1) HDB15 Female (for monitor)
CPU : (8) Microphone
(8) Stereo (for audio)
(8) SPDB15 Female (for keyboard, mouse, monitor)
COMPUTER INTERFACE-
USB or PS/2
INDICATORS - LEDs for On-Line, Selected
PORT SELECTION-
Hot keys, OSD, and push butt
