MODEL- 2L5301U VENDOR- ATEN TECHNOLOGY

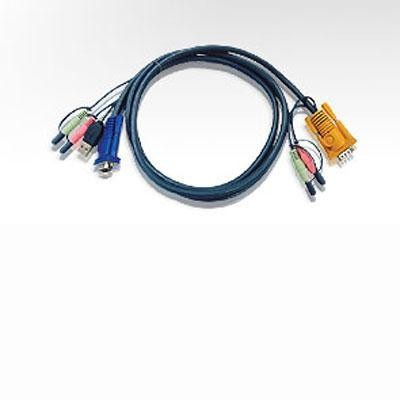

FEATURES- USB KVM Cable for CS1758- 3.94 feet
This cable is designed for the following ATEN KVM switches: CS1732,
CS1734, CS1754, and CS1758. These all-in-one bonded KVM cables are
designed to deliver superb video quality and error-free
transmission for your high-resolution applications. The aluminum
shield and an all-in-one bonded structure provide the maximum in
quality, performance, and reliability. The custom designed the DB15
connector combines keyboard, mouse, and video connections in one to
save the space on the KVM and allows 16 ports on a mere 1U high
space. The thin, flexible cable and the over-sized thumbscrews also
make installation quick and easy.
* This cable is designed for the following ATEN KVM switches: CS1732,
CS1734, CS1754, and CS1758.
* Innovative cable technology to minimize cross-talk and deliver superb
video quality for your high resolution applications.
* Aluminum shield to eliminate EMI/RFI interference and ensure signal
integrity and error-free transmission.
* Custom designed DB15 connector allows 16 ports on a 1U high space.
* Oversized ergonomic thumbscrews make installation quick and easy.
* All-In-One bonded cable design eases connections, setups and cable
management.
* Thin and flexible cable structure saves space and lowers carrying and
storage cost.
* UL rated materials used to ensure safety, corrosion resistance, and
longevity of the cable.

-- SPECIFICATIONs -----------------------------------
CONNECTORS - Console: (1) Microphone
(1) Audio
(1) HDB15 (for keyboard, mouse, monitor)
CPU : (1) Audio
(1) Microphone
(1) USB Type A (for keyboard & mouse)
(1) HDB15 (for monitor)
