MODEL- 2L5303U VENDOR- ATEN

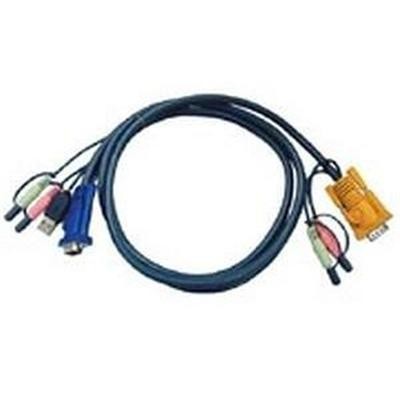

FEATURES- USB KVM Cable for CS1758- 10 feet
This cable is designed for the following ATEN KVM switches: CS1732,
CS1734, CS1754, and CS1758.
These all-in-one bonded KVM cables are designed to deliver superb
video quality and error-free transmission for your high-resolution
applications. The aluminum shield and an all-in-one bonded
structure provide the maximum in quality, performance, and
reliability. The custom designed the DB15 connector combines
keyboard, mouse, and video connections in one to save the space on
the KVM and allows 16 ports on a mere 1U high space. The thin,
flexible cable and the over-sized thumbscrews also make
installation quick and easy.
* Innovative cable technology to minimize cross-talk and deliver superb
video quality for your high resolution applications.
* Aluminum shield to eliminate EMI/RFI interference and ensure signal
integrity and error-free transmission.
* Custom designed DB15 connector allows 16 ports on a 1U high space.
* Oversized ergonomic thumbscrews make installation quick and easy.
* All-In-One bonded cable design eases connections, setups and cable
management.
* Thin and flexible cable structure saves space and lowers carrying and
storage cost.
* UL rated materials used to ensure safety, corrosion resistance, and
longevity of the cable.

-- SPECIFICATIONs -----------------------------------
CONNECTORs- CPU : (1) USB Type A (for keyboard & mouse)
(1) Microphone
(1) Audio
(1) 15 pin HDB male (for monitor)
Console: (1) DB15 (for Keyboard, video, mouse)
(1) Microphone
(1) Audio
