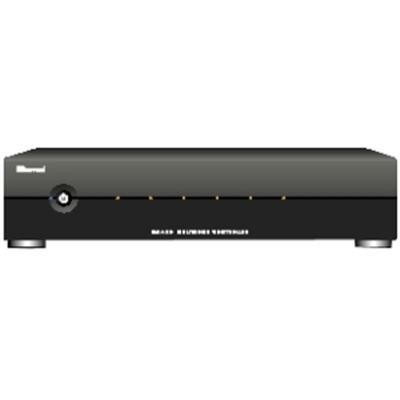

MODEL- CAA66L VENDOR- RUSSOUND

FEATURES- CAA Series Source Control Kit
Kit includes CAA66, (6) KPL Keypads, SRC1 Remote, and (6) 845.1 IR
Micro Emitters. Black Control and Almond Keypads.
Russound is proud to announce a new original to controller-amplifier
product offerings. The CAA66 includes features not typically found
at this price point. Simplified programming, audio playback
adjustments and extensive expandability make the CAA66 the only
choice for affordable excellence in multiroom audio.
Three elegantly designed keypad options are available for one-touch
control of home audio. The KP6 includes 20 labels for personalizing
source components, and the KPL has a LCD panel that makes enjoying
multiroom audio easier. Adjust the bass, treble, and balance from
the KP6 and KPL keypads in the home. Combine either with the KPSC
keypad for additional functionality and direct numeric selection
with no additional programming required.
Extensive IR device codes and learning capabilities are built into
the CAA66, making remote and keypad control of the system as simple
as pressing a key.
The CAA66 can be daisy-chained, easily expanding up to 36 zones, and
supports up to three keypads per zone, when used with the SA-ZX3.
Russound has system kits that include all the necessary components
for a CAA66 system. For additional cost savings, the kits include a
CAA66 controller-amplifier, six keypads (KP6 or KPL), an SRC1 and
six 845.1 emitters. For ease of installation, the controller can be
rack mounted (with the provided rack ears). Keypads are available
in five different colors, and fit perfectly in any Decora plate.
For homeowners who want to extend the benefits of their Apple iPod,
Russound makes it easy to connect an iPod to the CAA66 for sharing
and enjoying music collections throughout the home.
The CAA66 offers exceptional value, straightforward operation and
simplified programming for multiroom audio made easy.
* Full-featured: six-sources/six-zones, internal IR library, RS232, rack
mountable, and 40 watts per zone for flexibility and convenience.
* Adjustable bass, treble, balance, loudness and "all off" for total
control from keypads.
* Programming ease: program the controller and all zones are ready for use,
saving time.
* Expandable: daisy-chain six controllers for up to 36 zones and three
keypads per zone to satisfy any home and budget.
* Distinctive: new two-unit high controller design for elegant and
practical solution.

-- SPECIFICATIONs ----------------------------------
FUSE RATING - 110V input; F3.0A H 250V US and Canada
240V input; TF1.25A H 250V Europe
FREQUENCY RESPONSE - 20Hz ~ 20kHz +0/-2.5dB
WATTS PER CHANNEL - 20W RMS into 8 ohms
TOTAL HARMONIC DISTORTION-
<0.10%
SIGNAL TO NOISE RATIO-
>90.0 dB A-weighted gi>88 dB unweighted
AUDIO SOURCE INPUTS- 6
INPUT IMPEDANCE - 50 kohms
AUDIO ZONE OUTPUTS - 6 speaker level (8 ohms) 2 line level
SOURCE AUDIO INPUT - 2.2 Vrms max.
ZONE VARIABLE LINE AUDIO OUTPUT-
2.5 Vrms
ZONE FIXED LINE AUDIO OUTPUT-
2.5 Vrms
TRIGGER OUTPUT - 12VDC 100mA Max
TRIGGER INPUT - 12VDC
POWER SUPPLY - VAC 100-120 @3 A or 220-240V @ 1.25A 50/60Hz
DIMENSIONS - 17.0"w x 3.9"h x 11.5"d WT.- 17 lbs.


MANUFACTURER WARRANTY:  2 YEARS
